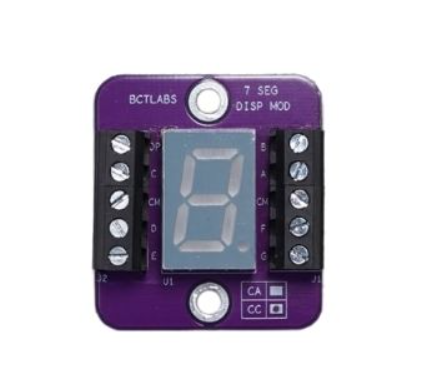

7-Segment Display Module
The BCTLABS 7-Segment Display Module provides clear numeric display with a common anode configuration. With easy connectivity and secure mounting, it is ideal for counters, timers, and digital display projects.
Clear Numeric Display
This module uses a 7-segment LED display to represent numbers and basic characters. It is suitable for applications such as counters, clocks, and measurement displays.
Common Anode Configuration
The display operates on a common anode design, where segments are activated using LOW signals. This makes it compatible with standard microcontroller interfacing techniques.
Easy and Secure Connections
The module includes screw terminals and a female berg connector, allowing quick and reliable connections without soldering, suitable for both beginners and advanced users.
Stable Installation
A mounting hole is provided for secure attachment to enclosures or project boards, ensuring stable and long-term usage.
Key Specifications
- Display Type: 7-Segment LED Display
- Configuration: Common Anode
- Control Logic: Active LOW
- Connection Type: Screw terminals & female berg connector
- Mounting: 1 pre-drilled mounting hole
- Build: Compact and durable PCB design
- Applications: Counters, timers, clocks, digital displays, embedded systems
